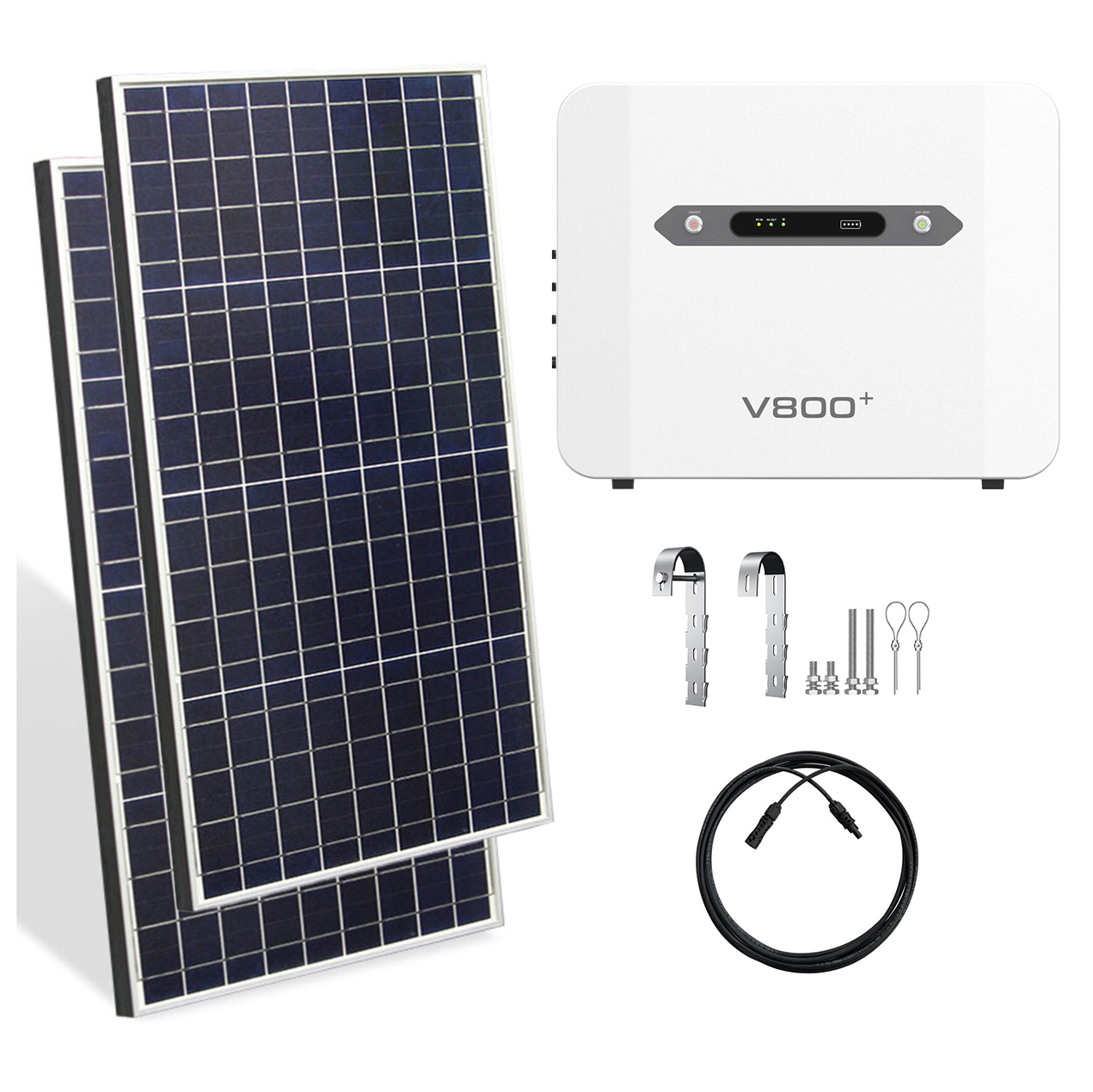

HOM-SESS03800W2P 800W Balcony Power Plants (Plug-and-play Photovoltaic System) with Built-in On-grid&Off-grid Inverter and 2 Solar Panels
| Solar Energy Storage System Parameters | |
| Type No. | HOM-SESS03800W2P |
| Inverter Output | 800W(on-grid) & 1600W(off-grid) |
| Battery Power | 2560Wh |
| Solar Panels Input | 550Wp*2=1100W |
| AC Input | 1200W |
| PV Cable | 4 mm² copper-core wire (length on request) |
| Plug Type | As your needs |
| All-in-one ESS Parameters | |

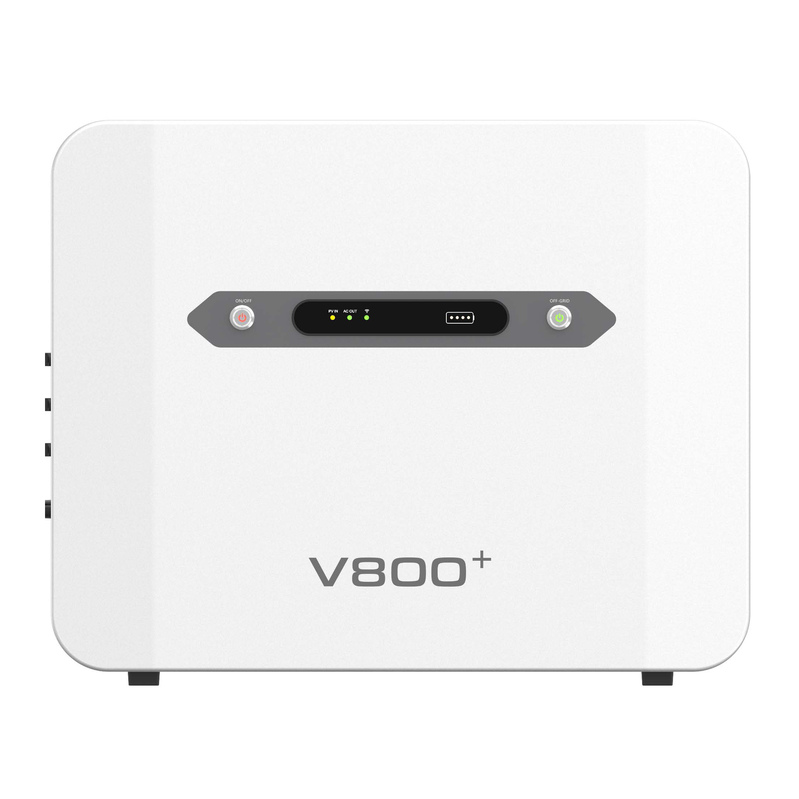

| Model | HOM-V800 |
| Battery Type | LiFePO4 battery |
| System Voltage | DC 51.2V |
| System Power | 2560Wh |
| Colour | White |
| Working Temperture | -20°C~40℃ |
| Storage Temperture | -20℃~45℃ |
| Size | 618*200*488mm |
| Weight | 38kg |
| Ingress Protection | IP65 |
| Certifications | CE/RF/ROHS/IP65/UN38.3 |
| WiFi & APP | Support, APP needs customization |
| Built-in Hybrid Inverter Parameters | |
| Output Power | 800W(on-grid) & 1600W(off-grid) |
| Output Voltage | AC 120V/230V |
| Frequency | 50Hz/60Hz |
| Input Power (PV) | 800W*1+600W*2=2000W max (on-grid) |
| Input Power (AC) | 1200W max (off-grid) |

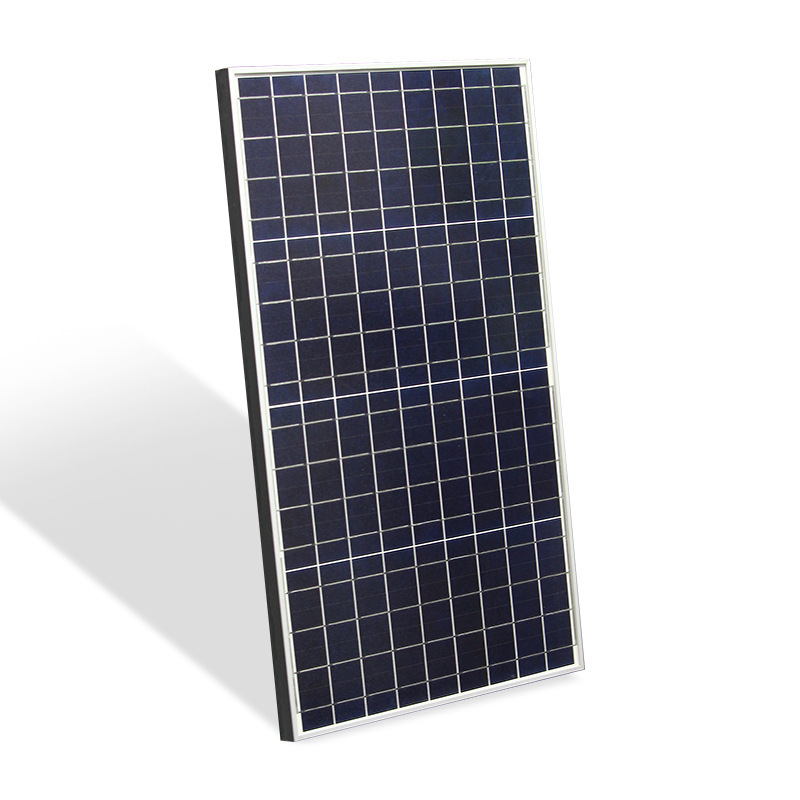

| Solar Panel Parameters (per piece) | |
| Rated Power | 550Wp |
| Operating Voltage | 43.35V |
| Size | 2278×1134×30mm |
| Weight | 26.3kg |
